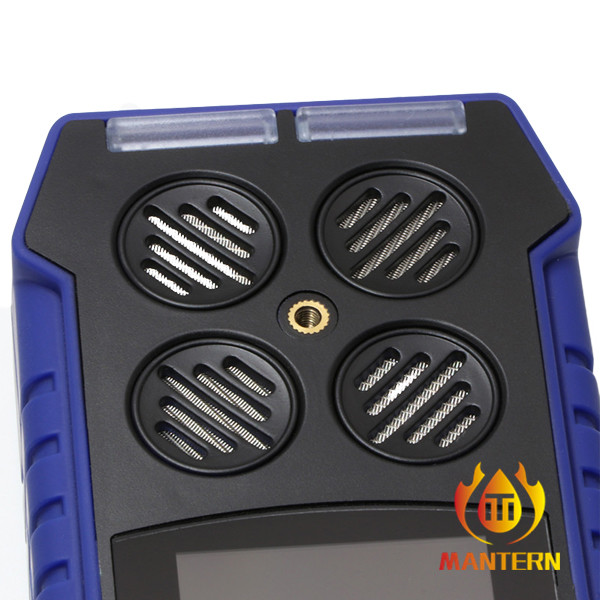

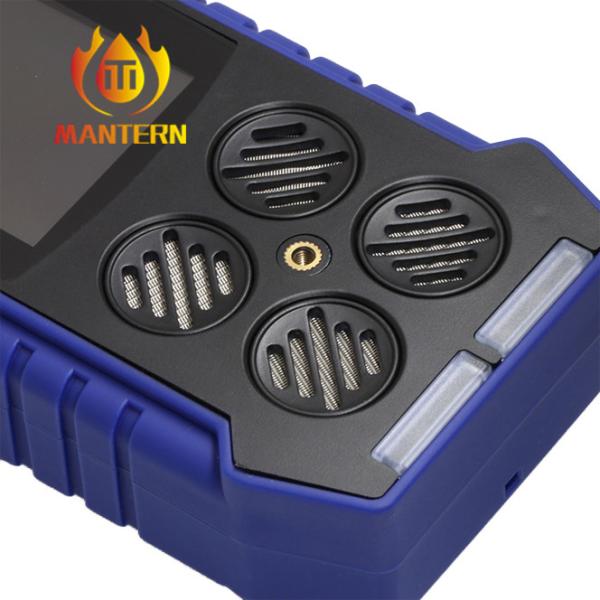

CO , O2 , CH4 , H2S 4 in 1 Multi Gas Monitor Portable Gas Detector
Brief Introduction
MTPG12 portable multi-gas detector could detect combustible gas, O2 and other two types toxic gases continuously and simultaneously. It is widely used in the area where explosion-proof is required or toxic gas leaks, like underground channels or mining industry, so as to protect the workers’ life and avoid damage on the relevant equipments.
Features
Natural diffusion sampling method and high-sensitivity sensor, with high sensitivity and repeatability.
32-bit built-in MCU, high reliability and self-adaptation ability.
Full functions, easy operation.
CSTN colorful LCD, more intuitionistic, abundant and clear indication.
Compact design, easy carrying.
High strength engineering plastics and compound anti-slippery rubber; high strength, water-proof, dust-proof and explosion-proof.
500pcs data records, can be contact with computer via software. Can print the data records, can store data records, can make the data analysis.
Technical Data:
Principle: Electrochemical and Catalytic sensor.Normal gases:CH4, O2, H2S, CO. Other gases
needed, please contact supplier
Range: CH4: (0~100)%LEL;O2: (0~30.0)%vol;H2S: (0~100)ppm ;CO: (0~1000) ppm
Resolution: CH4: 1%LEL, O2: 0.1%vol ,H2S:1ppm, CO: 1ppm
Accuracy: ≤±2%FS
Sampling method: Diffusion type(Sampling pump optional)
Unit: ppm,mg/m3,%VOL,%LEL
Response Time(T90):<30S
Display: LCD displays real-time and system status
Color curve: Colorful LCD gas curve display
Alarm method: Audio, Visual LED,Vibratory and LCD Indicators
Working environment: -20ºC~50ºC
Power Supply: 3.7V,1800mA Rechargeable lithium battery
Gas Sensor Life: 2 years
Data record: 500pcs data storage
Data upload: USB interface data upload with computer software
Password protection: Password protection and password modification
Explosion-proof grade: Exib IIB T3 Gb
Humidity: 0-95%RH (no dew)
Shell material: ABS+PC
